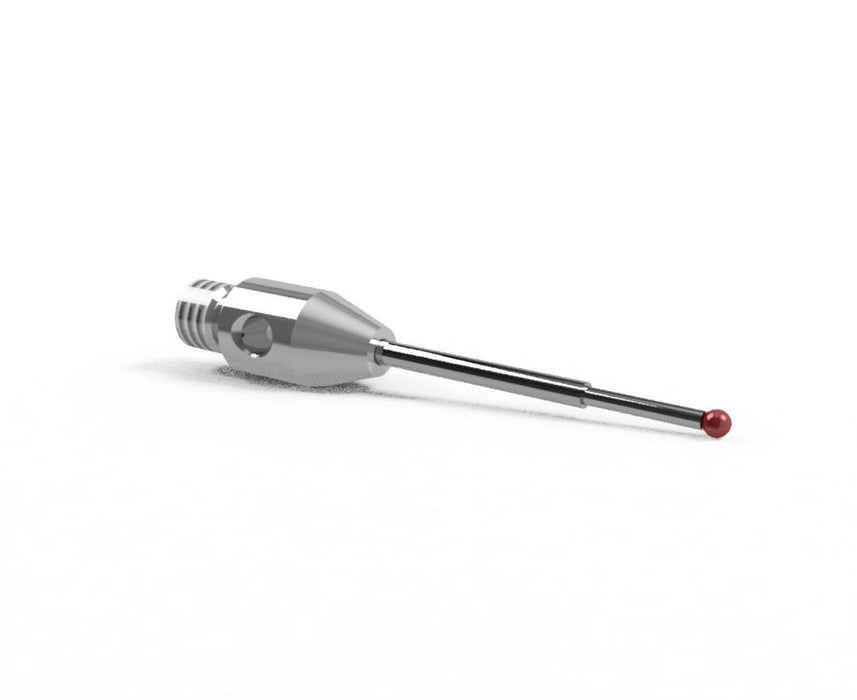

SM3 S06 022 RCA - Stepped M3 CMM Stylus 0.6mm Ruby Ball, 22mm Tungsten Carbide Stem, EWL 15mm

SM3 S06 022 RCA - Stepped Micro M3 CMM Stylus, 0.6mm Ruby Ball, 22mm Tungsten Carbide Stem, EWL 15mm

CAD$53.00 - CAD$53.00
CAD$53.00
CAD$53.00 - CAD$53.00
CAD$53.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 0.6 mm Ball
  • Ball Material: Ruby
  • Stem Length: 22 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15 mm

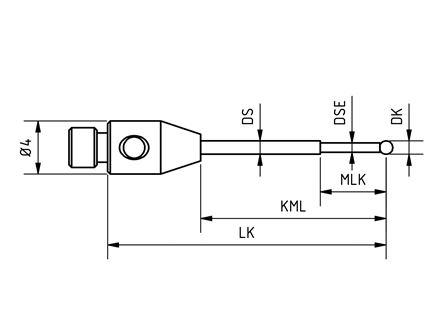

  • DK: 0.6 mm
  • LK: 22 mm
  • KML: 15 mm
  • MLK: 4 mm
  • DS: 1 mm
  • DSE: 0.4 mm

Equivalent to:

  • Zeiss 626113-0061-020
  • QMark TM3-0622-09
  • ITP TH M3 006 04 022
