SM5 080 0635 RCA - Straight M5 CMM Stylus 8mm Ruby Ball, 63.5mm Tungsten Carbide Stem, EWL 50.5mm

SM5 080 063 RCA - Straight M5 CMM Stylus, 8mm Ruby Ball, 63mm Tungsten Carbide Stem, 50.5mm EWL

CAD$69.00 - CAD$69.00
CAD$69.00
CAD$69.00 - CAD$69.00
CAD$69.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 8 mm Ball
  • Ball Material: Ruby
  • Stem Length: 63 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 50.5 mm

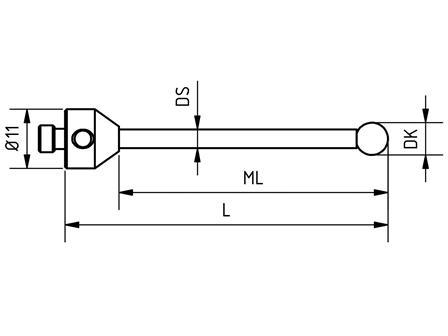

  • DK: 8 mm
  • L: 63 mm
  • ML: 50.5 mm
  • DS: 6 mm

Equivalent to:

  • Zeiss 600342-8023-000
  • QMark ATG-8064
  • ITP TH M5 080 11 063
