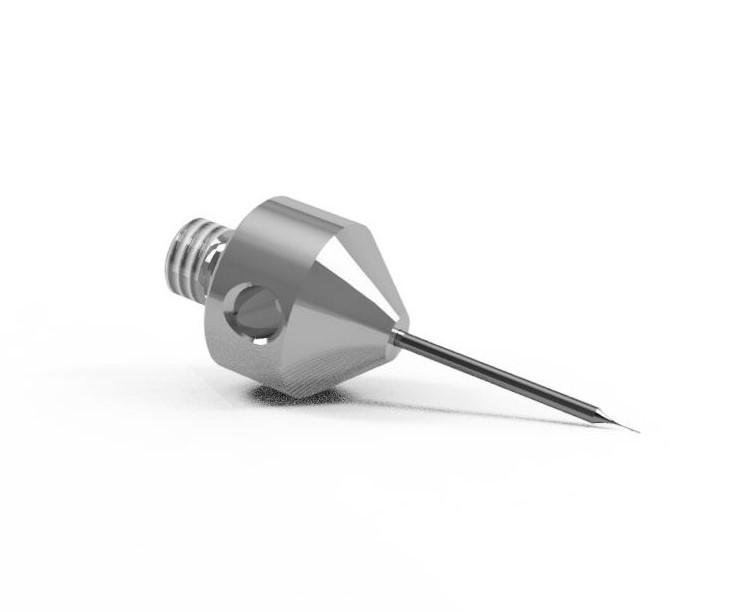

SM5 M01 025 CCA - Stepped Micro M5 CMM Stylus, 0.1mm Carbide Ball, 25mm Tungsten Carbide Stem, 15mm EWL

Original price CAD$509.00 - Original price CAD$509.00
Original price
CAD$509.00
CAD$509.00 - CAD$509.00
Current price CAD$509.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 0.1 mm Ball
  • Ball Material: Carbide
  • Stem Length: 25 mm
  • Stem Material: Carbide
  • Effective Working Length: 15 mm

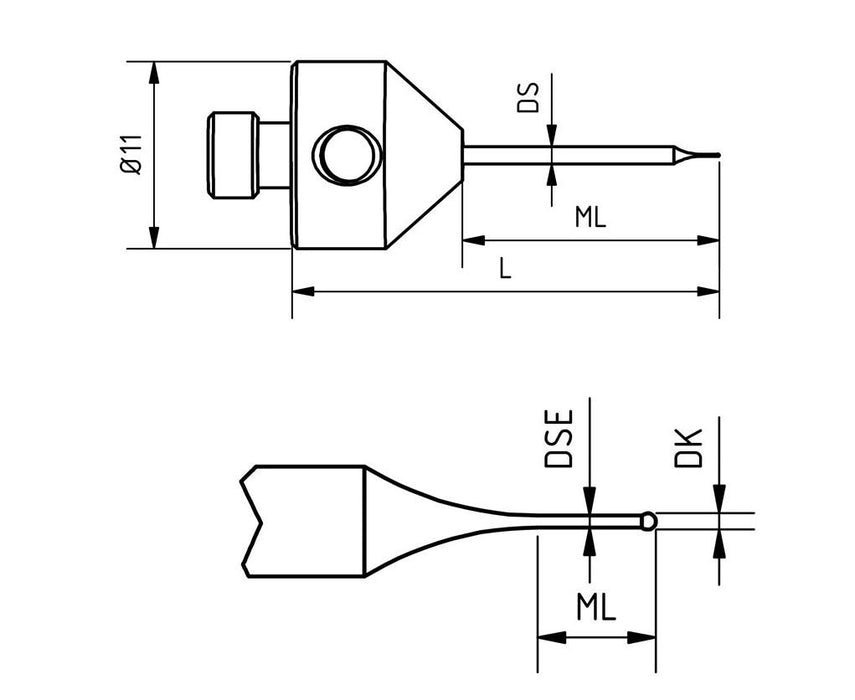

  • DK: 0.1 mm
  • L: 25 mm
  • ML: 15 mm
  • MLE: 1 mm
  • DS: 1mm
  • DSE: 0.07mm
