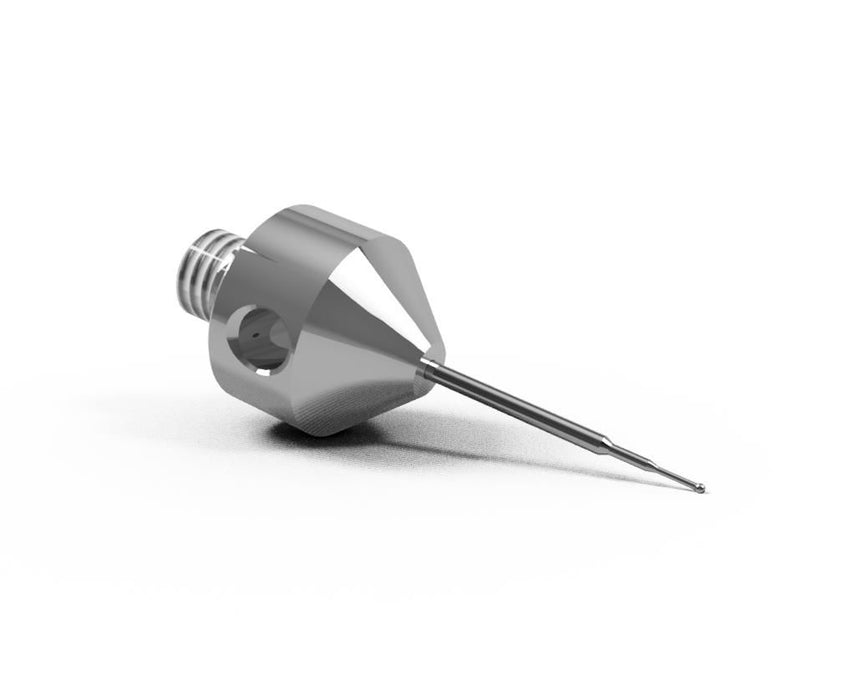

SM5 M05 025 CCA - Stepped Micro M5 CMM Stylus 0.5mm Carbide Ball, 25mm Tungsten Carbide Stem, EWL 2.6mm

SM5 M05 025 CCA - Stepped Micro M5 CMM Stylus, 0.5mm Carbide Ball, 25mm Tungsten Carbide Stem, 15mm EWL

CAD$97.00 - CAD$97.00
CAD$97.00
CAD$97.00 - CAD$97.00
CAD$97.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 0.5 mm Ball
  • Ball Material: Carbide
  • Stem Length: 25 mm
  • Stem Material: Carbide
  • Effective Working Length: 15 mm

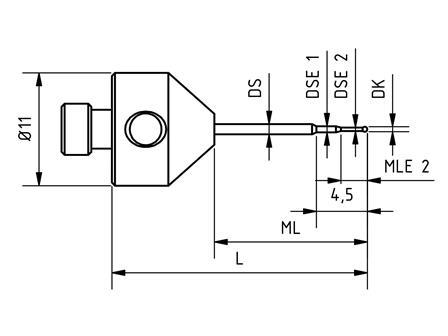

  • DK: 0.5 mm
  • DS: 1 mm
  • DSE1/2: 0.6/0.32 mm
  • L: 25 mm
  • ML: 15 mm
  • MLE1/2: 4.5/2.6 mm
