SM5 S05 032 RCA - Stepped M5 CMM Stylus 0.5 mm Ruby Ball, 32 mm Tungsten Carbide Stem, EWL 1.3mm

SM5 M05 032 RCA - Stepped M5 CMM Stylus, 0.5mm Ruby Ball, 32mm Tungsten Carbide Stem, 12mm EWL

CAD$109.00 - CAD$109.00
CAD$109.00
CAD$109.00 - CAD$109.00
CAD$109.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 0.5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 32 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 12 mm

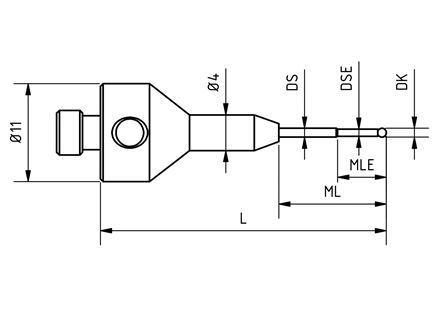

  • DK: 0.5 mm
  • L: 32 mm
  • ML: 12 mm
  • MLE: 2.6 mm
  • DS: 1 mm
  • DSE: 0.32 mm

Equivalent to:

  • Zeiss 626115-0050-032
  • QMark AFG-0530-C
  • ITP FH M5 005 11 032
