SM5 S06 025 RCA - Stepped M5 CMM Stylus 0.6 mm Ruby Ball, 25 mm Tungsten Carbide Stem, EWL 4mm

SM5 S06 025 RCA - Stepped M5 CMM Stylus, 0.6 mm Ruby Ball, 25 mm Tungsten Carbide Stem, 15mm EWL

CAD$121.00 - CAD$121.00
CAD$121.00
CAD$121.00 - CAD$121.00
CAD$121.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 0.6 mm Ball
  • Ball Material: Ruby
  • Stem Length: 25 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15 mm

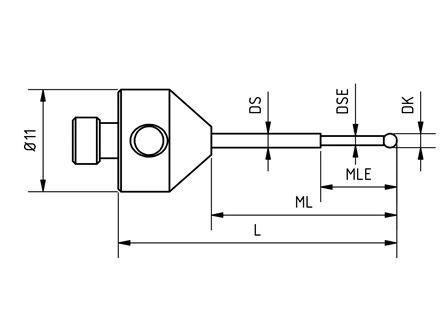

  • DK: 0.6 mm
  • L: 25 mm
  • ML: 15 mm
  • MLE: 4.6 mm
  • DS: 1 mm
  • DSE: 0.4 mm

Equivalent to:

  • Zeiss 626115-0060-022
  • QMark AFG-0625
  • ITP NH M5 006 11 022
