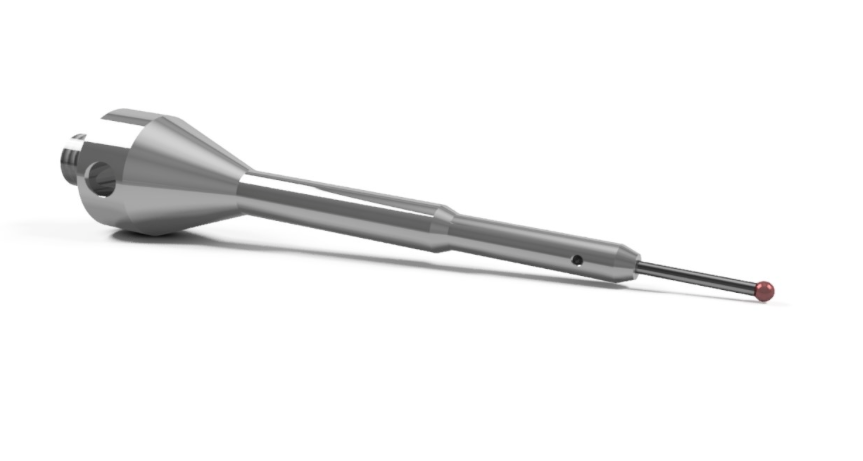

SM5 S15 060 RCA - Stepped M5 CMM Stylus, 1.5mm Ruby Ball, 60mm Tungsten Carbide Stem, 45mm EWL

SM5 S15 060 RCA - Stepped M5 CMM Stylus, 1.5mm Ruby Ball, 60mm Tungsten Carbide Stem, 45mm EWL

CAD$92.00 - CAD$92.00
CAD$92.00
CAD$92.00 - CAD$92.00
CAD$92.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 1.5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 60 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 45 mm

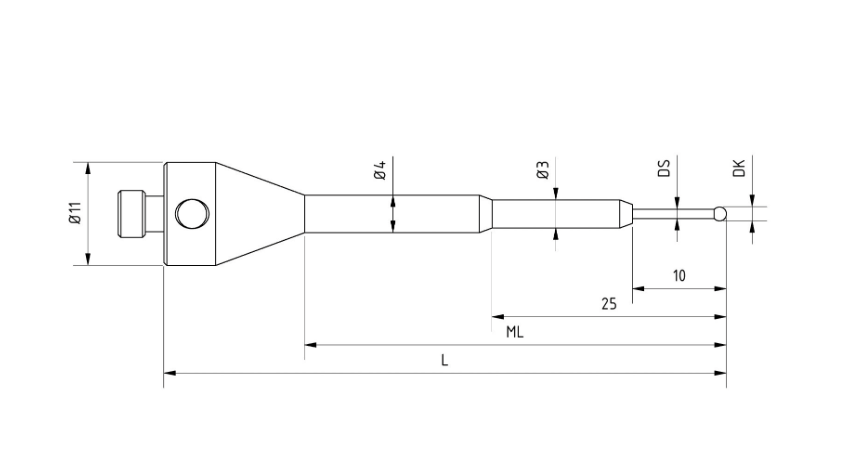

  • DK: 1.5 mm
  • L: 60 mm
  • ML: 45 mm
  • DS: 1 mm
